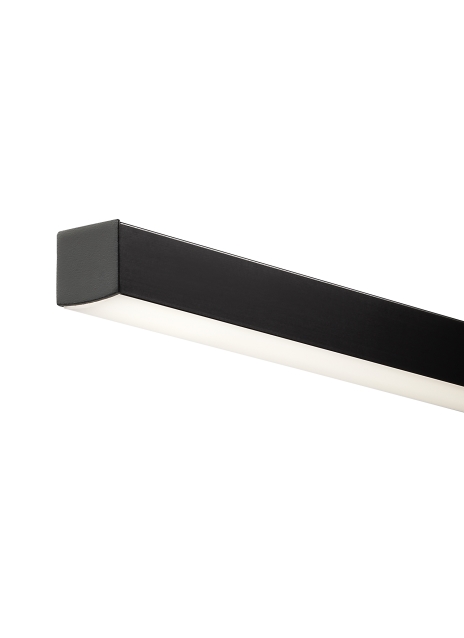

SURFACE 0606

ESSENCE architectural light channels provide premium, made-to-order, specification grade, high color quality 24VDC linear task and accent lighting solutions. Backed by short lead times and impeccable service, ESSENCE is easy to specify and install.

    Clean Aesthetic with Minimal Shadowing
  • Concealed mounting hardware, minimal end cap thickness (0.04” thick)
  • Tight LED pitch (Static White. 72 LEDs/ft. Warm Dim. 52 LEDs/ft). Black and White Lenses eliminates pixilation for Static White
  • Concealed joiner allows individual segments to be joined with minimal shadowing
  • Ease of Specifying and Installation
  • Factory Assembled and Field Assembled options available
  • Fixtures available in 1-inch increments up to 50 ft, length includes end caps
  • Fixtures longer than 8 ft contain multiple equal length segments that are joined in the field
  • Two mounting options. Fixed mounting includes 3M™ Tape and easy snap-in mechanical mounting clips for ceiling and wall mount. Magnetic mounting allows for tool-less installation to metal surfaces
  • Application Versatility
  • Standard reverse-phase, forward-phase, and TRIAC dimming down to 0.2%, Lutron Hi-lume Ecosystem down to 0.1%, Standard 0-10V down to 5%, and eldoLED 0-10V down to 0.1%
  • Registered CEC appliance database. Can be used to comply with CEC 2019 title 24 part 6
  • ETL listed Class 2, Damp listed. approved for use in closet storage spaces per NEC Article 410.16
Includes 95+ CRI LED tape and available in 2400K, 3000K, 3500K, 4200K Static White and 3000K-1800K Warm Dim.
