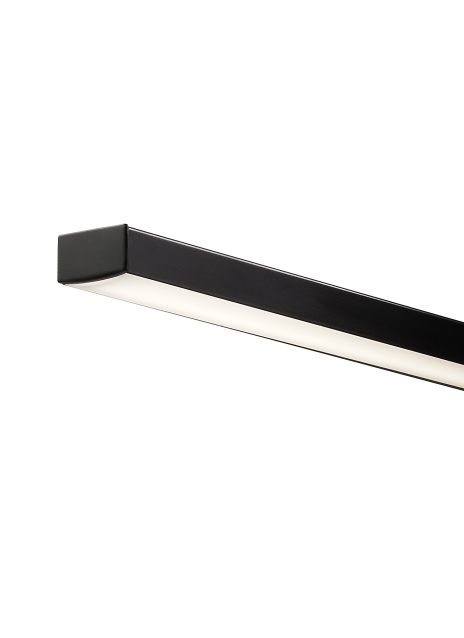

ESSENCE architectural light channels provide premium, made-to-order, specification grade, high color quality 24VDC linear task and accent lighting solutions. Backed by short lead times and impeccable service, ESSENCE is easy to specify and install.
Premium Color Quality and Consistency
- U-Series Static White. 1-step color consistency, CRI 97+, R9 95+, Rf 95+, Rg 100
- P-Series Static White. 2-step color consistency, CRI 95+, R9 90+, Rf 90+, Rg 95-105
- Warm Dim. 2-step color consistency, CRI 95+, R9 90+, Rf 90+, Rg 95 Clean Aesthetic with Minimal Shadowing
- Concealed mounting hardware, minimal end cap thickness (0.04” thick)
- Tight LED pitch (Static White 72 LEDs/ft. Warm Dim. 52 LEDs/ft). White Lens eliminates pixilation for Static White
- Concealed joiner allows individual segments to be joined with minimal shadowing (Field Assembled runs over 8ft) Ease of Specifying and Installation
- Fixtures available in various increments up to 8 ft (Factory Assembled) and up to 50 ft (Field Assembled), length includes end caps
- Includes 3M™ Tape and easy snap-in mechanical mounting clips for ceiling and wall mount Application Versatility
- Standard phase dimming down to 0.2% and Lutron Hi-lume Ecosystem down to 0.1% and eldoLED 0-10V down to 0.1%
- Registered CEC appliance database. Can be used to comply with CEC 2019 title 24 part 6
- ETL listed Class 2, Damp listed. All outputs except 625 LM/FT are approved for use in closets and storage spaces per NEC Article 410.16
Includes 95+ CRI LED tape and available in 2400K, 3000K, 3500K, 4200K Static White and 3000K-1800K Warm Dim.
