Clear Black Finish
Available Options
#techlighting_official

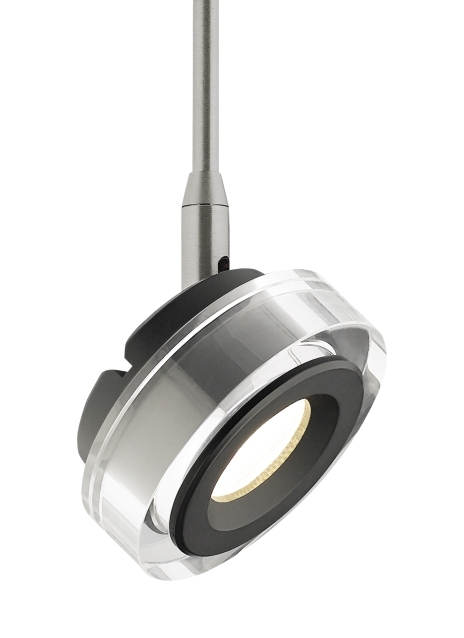

BRIM HEAD
The Brim head and display light by Tech Lighting features a handsome and industrial design while delivering on functionality. The ultra-slim head features field-changeable optics and an optional decorative glass collar. The latest advances in technology deliver an extremely powerful LED head without the bulk typically needed to conceal a driver and manage thermal performance. The Brim head is highly customizable and is compatible with the Monorail and Monopoint systems by Tech Lighting. This low-voltage display head is ideal for commercial and residential lighting applications. The Brim ships with an integrated lens holder to accommodate two dimmable lenses or louvers (both sold separately).
- Field-changeable optics for ultimate customization
- Advanced LED technology
- Modest size profile to minimize bulky appearance
- Compatible with the Monorail and Monopoint systems by Tech Lighting
- Integrated fully dimmable LED lamp
- Protected by a 5-year warranty
Includes 9.2 watt, 647.5 delivered lumens, 2700K or 3000K, 90 CRI field replaceable LED module Dimmable with most LED compatible ELV and Triac dimmers. Choice of 20°, 30° or 40° field changeable optics. Integrated lens holder accommodates up to 2 lenses or louvers (sold separately) As a general rule when using the Brim head, we do not recommend using greater than 33% of the maximum wattage specified for the low voltage transformer due to inrush current requirements. For assistance in calculations, please contact Technical Support.
Item Builder
Generate your item by selecting an option from each category below. Once you have chosen all options, your part number will be generated below.
TYPE
700 System
MODEL
BRM Color Temp
Beam Spread
Length
Color
Finish
Note. MP includes 4 Round Flush Canopy.
Matte Black Finish option ships with Satin Nickel Stem.
4" Stem length not available on WMO System option. For custom stem lengths, please contact the Quotes Department.
700
